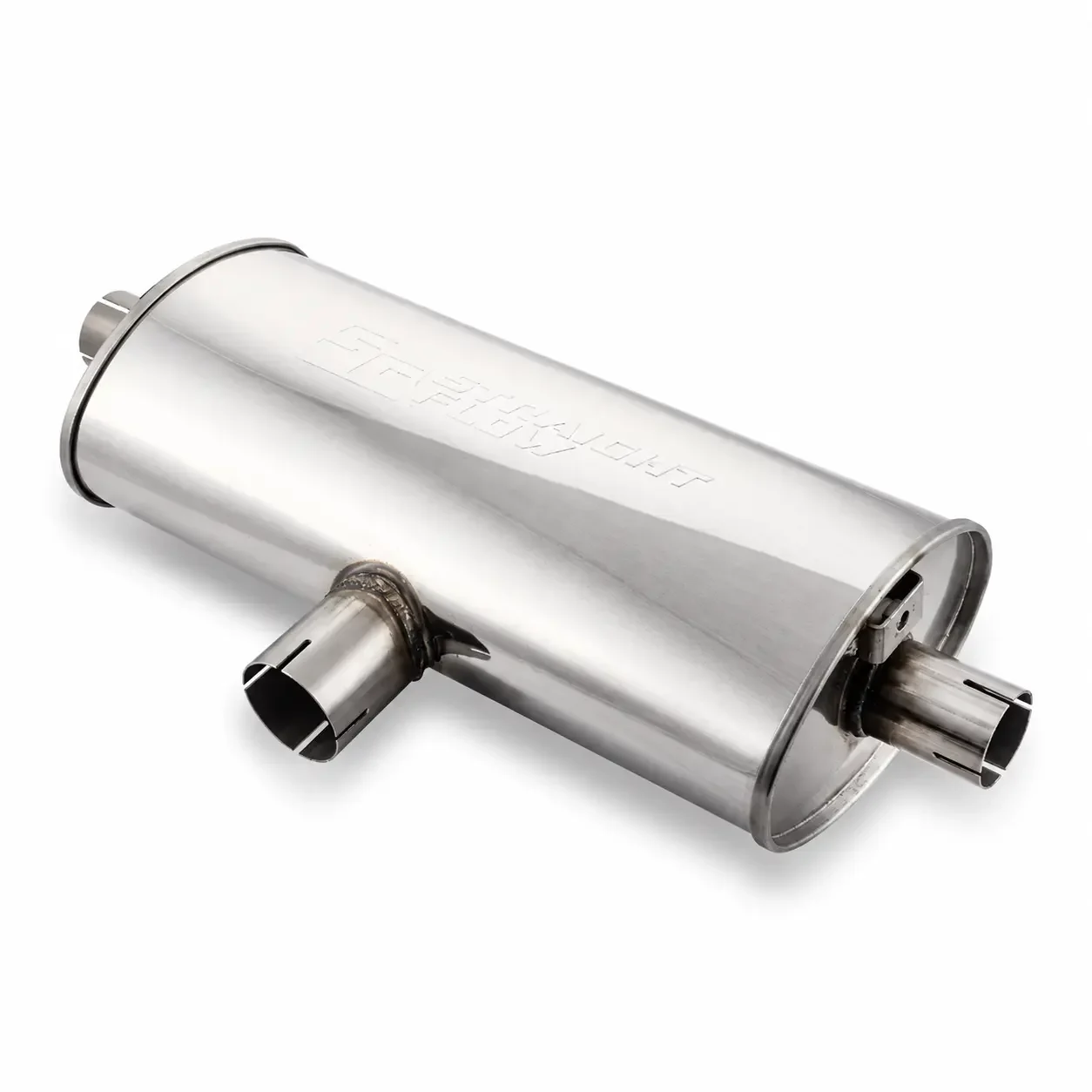

Muffler Oval In-63 Out-50 140/220mm L=500mm

Oval Muffler In-63 Out-50 140/220mm L-500mm Stainless Steel

The Oval Muffler In-63 Out-50 140/220mm L-500mm is a high-flow stainless steel performance muffler designed for systems requiring a single 63.5mm inlet and dual 50.8mm outlets.

With a 140mm x 220mm oval body and extended 500mm body length, this muffler provides improved sound dampening while maintaining strong exhaust flow characteristics.

The configuration includes:

• Single 63.5mm inlet (center position)

• Dual 50.8mm outlets (dual exit layout)

This makes it ideal for applications where a single exhaust line splits into dual rear exits.

The straight-through perforated core design minimizes backpressure while delivering a deep and refined sporty exhaust tone.

Manufactured from high-quality stainless steel, it ensures durability, corrosion resistance, and long service life under high temperature conditions.

Key Features

• Oval body 140mm x 220mm

• 500mm body length

• 63.5mm single inlet

• Dual 50.8mm outlets

• Center / dual configuration

• Straight-through high-flow core

• Stainless steel construction

• Reduced backpressure design

Technical Specifications

• Body shape: Oval

• Body size: 140mm x 220mm

• Body length: 500mm

• Inlet position: Center

• Outlet position: Dual

• Inlet inner diameter: 63.5mm

• Outlet inner diameter: 50.8mm (x2)

• Each side pipe length: 70mm

• Material: Stainless Steel

Applications

The Oval Muffler In-63 Out-50 140/220mm L-500mm is suitable for:

• Single-to-dual exhaust conversions

• Custom stainless steel exhaust fabrication

• 2.5-inch inlet systems with dual rear exits

• Sport and street performance vehicles

• Naturally aspirated and turbocharged engines

• Professional workshop installations

Professional installation recommended.
